HandTrackingClient::BasicMessage Class Reference

#include <HandTrackingMessage.h>

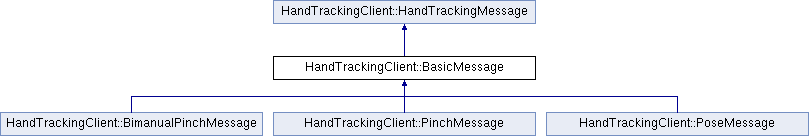

Inheritance diagram for HandTrackingClient::BasicMessage:

Public Member Functions
MessageType	getType () const
const HandState &	getHandState (int hand) const
	Returns the overall general hand state, excluding fingers. More...
	BasicMessage (const MessageType type, const Vector3f &positionLeft, const Quaternionf &rotationLeft, const int clickCountLeft, const Vector3f &positionRight, const Quaternionf &rotationRight, const int clickCountRight)
	Constructs a BasicMessage. Should not generally be called by users of the API.
std::string	serialize () const

Additional Inherited Members
Public Types inherited from HandTrackingClient::HandTrackingMessage
enum	MessageType {   WELCOME = 0, USER = 100, CALIBRATION = 101, POSE = 200,   PRESSED = 300, DRAGGED = 301, RELEASED = 302, MOVED = 303,   SIMULTANEOUSLY_PRESSED = 400, INDIVIDUALLY_PRESSED = 401, SIMULTANEOUSLY_RELEASED = 402, INDIVIDUALLY_RELEASED = 403,   DRAGGED_BIMANUAL = 404, POINT = 500, INVALID_DATA = 10000 }
Static Public Member Functions inherited from HandTrackingClient::HandTrackingMessage
static const char *	messageTypeToString (MessageType m)
	Convert from a MessageType to its string representation; used for serialization.
static MessageType	stringToMessageType (const std::string &str)
	Convert from a string to a MessageType; used in deserialization.
static HandTrackingMessage *	deserialize (const std::string &data)
	Given a line of text sent over the network connection, converts it to a valid hand message. More...
Protected Member Functions inherited from HandTrackingClient::HandTrackingMessage
	HandTrackingMessage ()

Detailed Description

The basic form of the message includes a type, which hand was updated, and the position and rotational frame of each hand.

Member Function Documentation

const HandState& HandTrackingClient::BasicMessage::getHandState ( int  hand ) const

inline

Returns the overall general hand state, excluding fingers.

This is the most rigid, stable frame returned by the hand tracking and is probably the one you want to use for selection. It is defined by the position and rotation of the back of the hand (excluding the wrist).

MessageType HandTrackingClient::BasicMessage::getType ( ) const

inlinevirtual

Returns the message type (e.g. PRESSED or DRAGGED). The message type is useful for distinguishing between similar messages, e.g., between PRESSED and RELEASED, which are both PinchMessages.

Implements HandTrackingClient::HandTrackingMessage.

std::string HandTrackingClient::BasicMessage::serialize ( ) const

virtual

Serializes the message to a string, which could then be output over the network.

Implements HandTrackingClient::HandTrackingMessage.

Reimplemented in HandTrackingClient::PoseMessage, HandTrackingClient::BimanualPinchMessage, and HandTrackingClient::PinchMessage.

---

The documentation for this class was generated from the following files:

• HandTrackingMessage.h
• HandTrackingMessage.cpp
