DevKit Installation Part 1 (for Win64)
What if I have Mac OS X instead?
System Requirements
- 3Gear Development Kit (including camera stand and PrimeSense short range camera).
- PC with at least an Intel Core i7 processor and 8GB RAM
- Windows 7 64-bit
- Java SE 6 64-bit
Installation

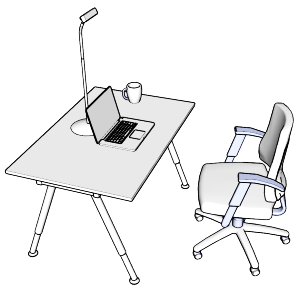

Figure 1: Camera setup and frame.

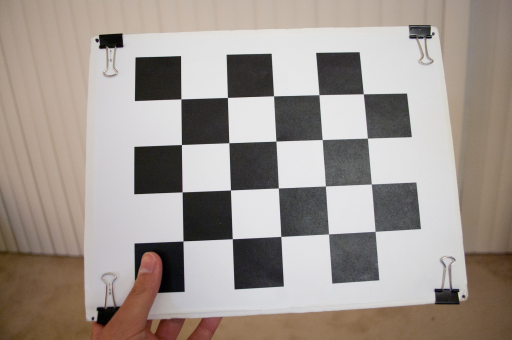

Figure 2: Checkerboard mounted on a foam core board with binder clips.
- Assemble the frame as shown in instructions. The base of the camera should fit snugly on the black hex nut. Place the stand behind your monitor or laptop (See Figure 1).
- Download and install the SDK 64-bit binaries.
- Request a license from 3Gear Systems and place the license.yml file where you installed the SDK 64-bit binaries. (This is typically C:\Program Files\NimbleSDK)
- Install OpenNI2 if you have not already. The installer dpinst-amd64.exe is located in C:\Program Files\NimbleSDK\Libraries\OpenNI2\Drivers\DeviceDriver\
- Print the checkerboard (on letter or A4 paper). See Figure 2, foam board optional.
